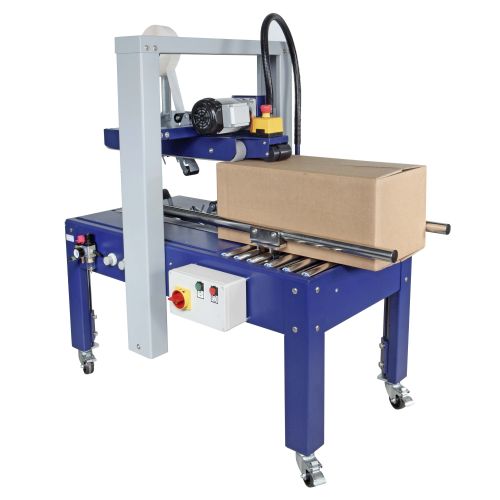

50 TBDA Random Size Case Taper - Three Phase

This Semi-Automatic Case Taper is top and bottom driven to provide safe and effective sealing of the top and bottom of cartons, simultaneously with a self-sizing system that automatically adjusts to the box's size.

This Case Taper comes equipped with castors as standard, and is covered by a 12 months parts and labour warranty.

This Case Taper is available with or without Infeed/Outfeed Conveyors.

Single Phase available on request

Tech Specs;

Standard Tape Width             50mm

LxWxH Min                            150x135x110mm

LxWxH Max                            ∞x500x500mm

Machine Max LxWxH              880x770x1810

Machine Weight                      162kg

Working Height                        670-850mm

Infeed Speed                           22 mtr/min

Power Supply                          400 V
